How to Remove a Bearing Race from a Truck Transmission Housing

Identify the race and confirm the removal method

Determine whether the race is a cup in the housing, a retained insert, or part of a larger assembly. Use the truck transmission service procedure for the exact model and housing location.

Release retainers and remove adjacent obstructions

Check for snap rings, plates, plugs, fasteners, or components that block the extraction path. Do not apply pulling force until every specified retainer is released.

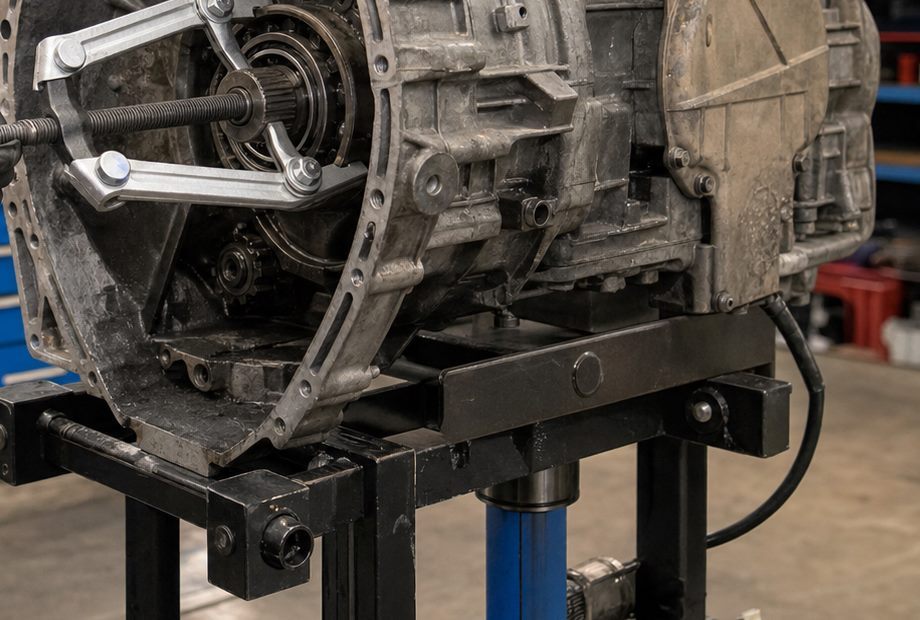

Support the housing in a stable position

Place the housing so it cannot twist or drop when the race comes free. Protect machined faces and ensure the work is not being supported on a thin casting edge.

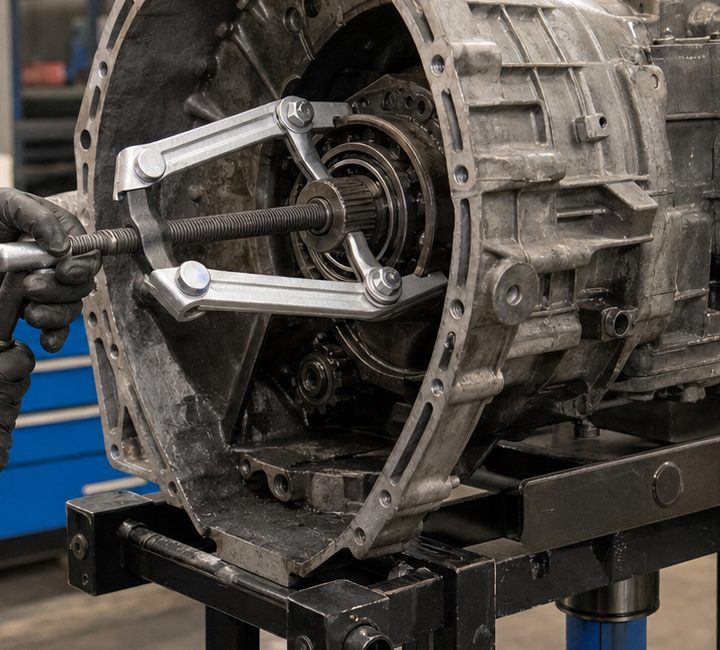

Choose an internal puller or approved extractor

An internal puller can grip a race from inside when there is no external lip. Match the expanding collet, jaws, bridge, and slide or forcing mechanism to the race diameter and depth.

Keep load centered in the housing bore

Align the extractor with the bore axis so the race exits squarely. Angled force can score the bore, deform the race, or damage the surrounding housing.

Avoid improvised levering against the case

Prying or chiseling can scar the bore and create installation problems. If the race will not move, stop and verify the procedure, heat guidance, and available approved tooling.

Use controlled heat only when specified

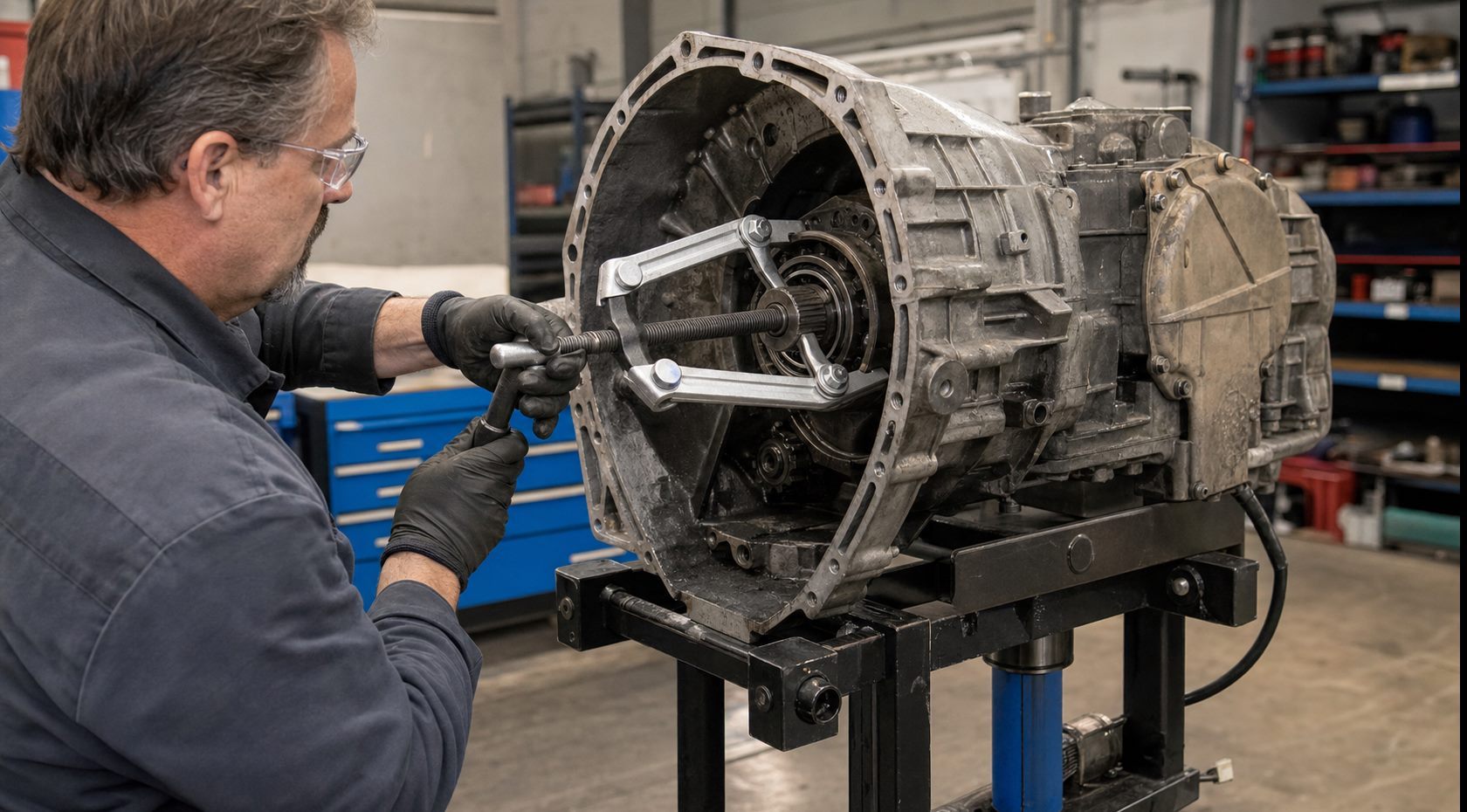

Some procedures permit controlled heating of the housing to help release an interference fit. Follow the temperature limits and protect seals, nearby parts, and the work area.

Inspect the bore after the race is removed

Clean the bore and check for scoring, corrosion, cracks, or raised material. Any defect can affect the new race fit and should be assessed before reassembly.

Plan the new race installation

Prepare a driver or press adapter that contacts the new race squarely and supports the housing correctly. DNT Tools can help match extraction and installation tools to your housing dimensions.

For a puller, separator, or support fixture matched to your application, contact DNT Tools with the bearing and housing dimensions.
