What Is an Armature Bearing Puller & Why It’s Needed

An armature bearing puller is a specialist tool used to remove bearings or gears fitted onto the shaft of an armature (rotor) in electric motors, automotive alternators, power tools, and other electrical devices. Unlike general-purpose pullers, it’s made for tight clearances and the delicate structure of motor armatures. At DNT Tools (宁波东宁工具厂), we craft high quality pullers tailored for precision and durability.

How an Armature Bearing Puller Works

The puller typically uses thin, curved jaws that hook under the bearing or gear on the rotor shaft. A center forcing screw is tightened, applying force to extract the bearing while keeping contact firm and even.

High-strength materials are used — for example, many pullers are made from drop-forged heat-treated steel to resist wear and ensure long life.

Why You Need One

Safe disassembly: It removes bearings without damaging the rotor shaft or windings.
Time-saving: Much faster and more controlled than makeshift methods like using a vise and pry bars.
Reliability: Built to handle stubborn or seized bearings, often with high load capacity.
Widespread use: Suitable for alternators, power tools, industrial motors, and more.

Choosing the Right Puller

Check the spread range (e.g. 19-35 mm, 24-55 mm, 35-80 mm). :
Ensure sufficient reach so the forcing screw can apply force without damaging internal parts.
Verify capacity, especially for seized or high-torque components.
Choose durable material: drop-forged, heat-treated steel is common.
Look for ergonomic features like a T-bar handle or quick-turn knob.

How DNT Tools Helps

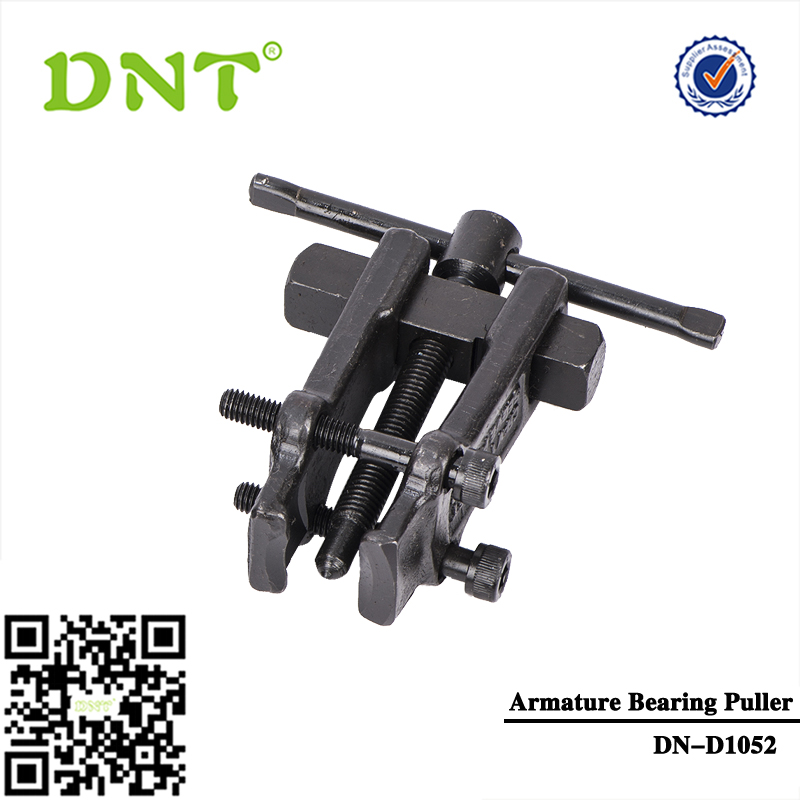

DNT Tools specializes in producing precision tools, including armature bearing pullers tailored for demanding applications. Our model DN-D1052 is made from alloy steel, drop-forged, and offers reliable strength and longevity.

We offer OEM and custom solutions, ensuring you can match puller size, material, and handle style to your specific motor or armature. Our technical team can help you choose the right model and support you with after-sales service.

Conclusion

An armature bearing puller is an essential tool for anyone working on electrical motors, alternators, or power tools. It provides safe, efficient, and reliable removal of bearings, especially in delicate or confined spaces. Choosing a high-quality model from a trusted manufacturer like DNT Tools can save time and protect your valuable components.

If you're looking for a puller that fits your application — or want to explore custom options — contact DNT Tools today. We're ready to help.
