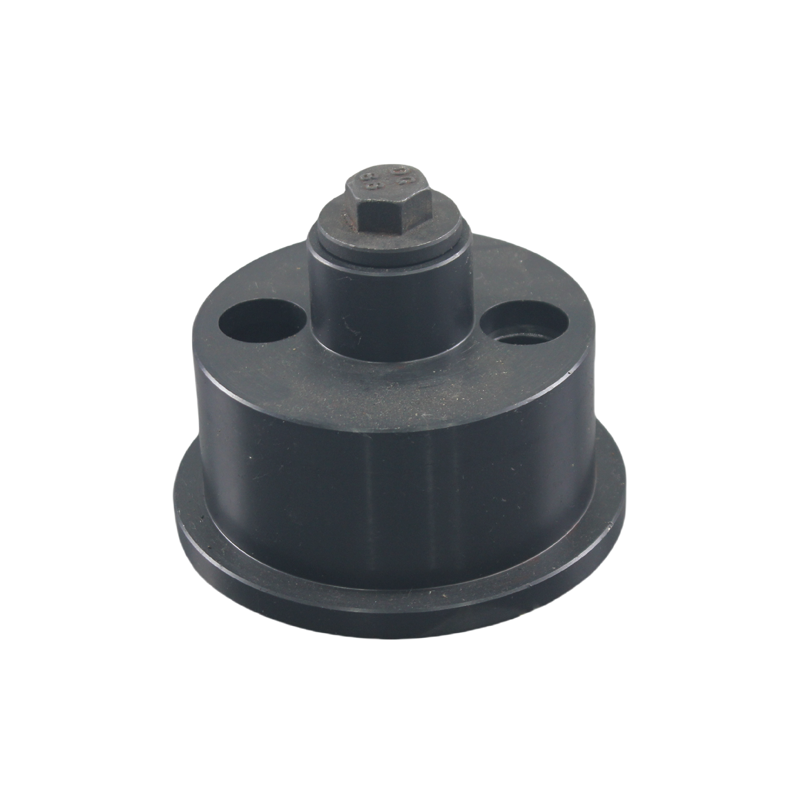

Quick Installation Workflow Using an Oil Seal Install Tool
Quick, Repeatable, Leak-Free
Quick Installation Workflow Using an Oil Seal Install Tool
Speed doesn’t have to sacrifice reliability. The workflow below distills best practices from leading seal guides into a fast, repeatable process you can apply in the shop or field—minimizing lip damage, cocking, and costly rework.
Phase 1 — Pre-Inspection & Preparation (2–5 min)
- Verify the parts: Confirm seal ID/OD/width match the shaft and bore; check lip and garter spring integrity.
- Inspect contact surfaces: Shaft and housing must be clean, burr-free, and smooth; remove nicks and sharp edges.
- Cleanliness first: Degrease bore/shaft; keep abrasives away from the sealing lip area.
- Chamfer & protect: Use a lead-in chamfer; slide a sleeve/guide over splines or threads before installation.
- Tooling check: Select a driver/mandrel that matches the seal case OD and seats square to the bore.
Phase 2 — Lube & Align (60–90 sec)
- Orientation: Lip (spring side) faces the fluid; dust lip faces contaminants.
- Lubrication: Light film on the lip and shaft; for rubber-coated cases, a thin film on the OD helps prevent rebound.
- Square setup: Start the seal square to the bore; verify with a straightedge/visual check before applying force.
Phase 3 — Drive/Press & Verification (1–3 min)
- Use the installer: Drive or press on the outer case only with a matched face; avoid striking the lip or cage.
- Even force: Apply steady, perpendicular pressure. With hand drivers, rotate light taps around the circumference.
- Depth control: Seat to the shoulder/stop. On presses, use a depth stop or face reference.
- Final checks: Confirm flush, square seating and smooth shaft rotation; wipe away excess lubricant and verify no lip roll-over.
Quick Reference — What to Use & When
| Scenario | Recommended Tooling | Key Controls |
|---|---|---|
| General automotive/maintenance | Hand seal driver or universal adapter set | OD-matched face, rotate taps, avoid lip contact |
| Tight tolerances / repetitive builds | Arbor or hydraulic press with matched mandrel | Depth stop, perpendicular force, clean bore |
| Over splines/threads | Guide sleeve/cone + light lubrication | Protect lip from edges; do not twist seal |
Pro Tips to Keep It Quick (and Right)
- Stage tools and parts before teardown; pre-fit the driver/mandrel.
- Mark target depth on the housing; verify with a quick straightedge check.
- Never dry-install—thin, even lube reduces friction and lip scuffing.
- If the shaft is worn, use a repair sleeve and reset seal depth to a fresh track.
Why Choose DNT Tools for Seal Installation
DNT Tools (Ningbo, China) designs and manufactures professional automotive and industrial tools with OEM/ODM support for global brands and workshops.
- Custom oil seal install tools, universal driver sets, and press mandrels sized to your OD ranges
- Precision CNC, consistent QC, and private-label kit bundling
- Rapid sampling and export support to 50+ countries
Upgrade your workflow with DNT Tools. Get repeatable, leak-free results with purpose-built drivers and sleeves.
Learn About DNT ToolsFast Troubleshooting
- Leak right away: Recheck orientation and lip damage; ensure square seating and correct OD fit.
- Weeps after a few hours: Shaft wear track or burrs—install a repair sleeve and reset depth.
- Seal walks out: Case OD too loose or over-lubed; clean bore, consider retaining options per OEM spec.
References & Further Reading
Bottom Line
Keep it clean, square, and lightly lubricated. Use an OD-matched install tool with controlled force, verify depth, and protect the lip—then let DNT Tools outfit your bench for fast, consistent, leak-free results.
