ZF 16S Transmission Gearbox Assembly Removal & Installation Tool Set

Why You Need Special Tools for the ZF 16S Gearbox

The ZF 16S gearbox features complex internal components, including a heavy planetary gear set, tapered roller bearings, and precision-aligned shafts. Using improper tools during disassembly or reinstallation may cause misalignment, component damage, or even unsafe operation post-repair. That's why using specialized tools — such as shaft extractors, centering plates, and gear support hangers — is critical for safe and efficient maintenance.

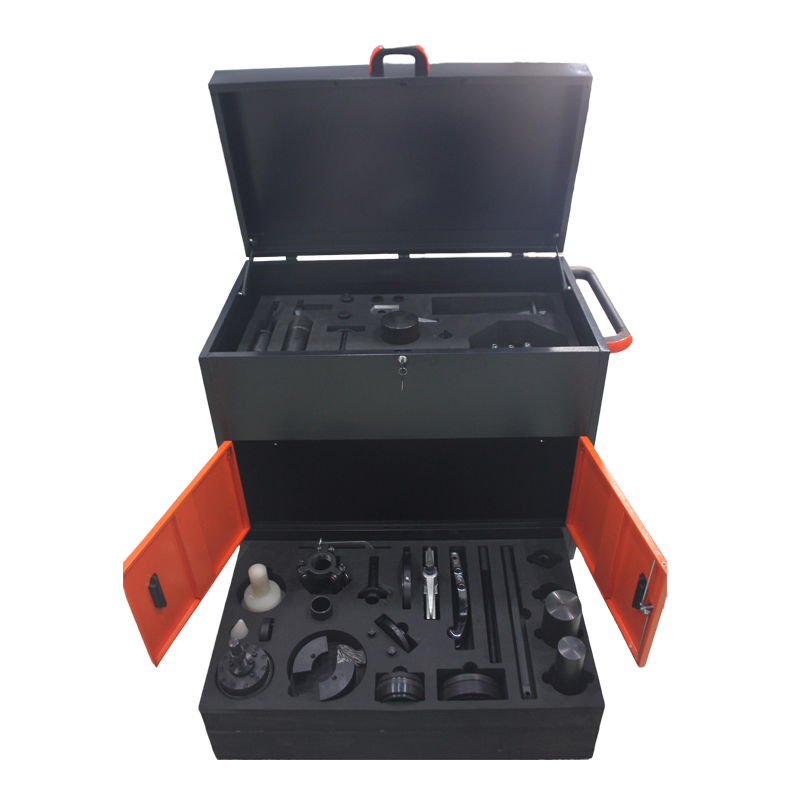

Core Tools in the Assembly/Disassembly Set

• Planetary Gear Hanging Device: Supports the heavy gear assembly during installation/removal to prevent damage and misalignment.
• Centering Plate & Spacers: Ensures the planetary gear ring aligns perfectly within the housing.
• Input Shaft Extractor: Used to safely remove the shaft without damaging seals or bearings.
• Rear Divider Finger & Bearing Pullers: Tools designed for safely disassembling rear housing and internal supports.
• Mandrels & Snap Ring Installers: For inserting and positioning roller bearings, rings, and spacers with controlled force.
•


Step-by-Step Assembly Guide (Planetary Gear)

1. Preheat the ring gear to 60–120°C to allow thermal expansion.
2. Align the planetary carrier with the ring using the centering plate.
3. Install the roller bearings and spacer rings using mandrels.
4. Use the planetary hanging device to safely lower and secure the gear into the housing.
5. Check axial play (recommended: 0.0–0.1mm) before securing snap rings.

Each step ensures a precision fit and prevents bearing misalignment, which is a common cause of premature gearbox failure.

NBDN Tools – Your Reliable Partner in Transmission Servicing

At NBDN Tools, we specialize in manufacturing professional-grade repair and assembly tools for heavy-duty truck transmissions — including ZF, Fast Gear, and Allison. Our ZF 16S gearbox tool set is engineered for precision, durability, and compatibility with OEM specifications.

• ✔ Over 10 years of industry expertise
• ✔ Trusted by workshops and fleets in over 40 countries
• ✔ Custom solutions available for transmission-specific needs

We don't just offer tools — we deliver reliable productivity for mechanics, OEMs, and aftermarket professionals.

Conclusion

Whether you're performing a routine gearbox overhaul or a full rebuild, having the right tools makes all the difference. The ZF 16S planetary gear system is a precision assembly that deserves precision handling. With NBDN Tools, you gain access to purpose-built equipment that ensures safety, speed, and success on every job.

👉 Need a quote or catalog? Visit www.nbdntools.com or contact our technical sales team today.
